Product Description:
NX1 AF747-B55 Electrochemical Nitric Oxide (NO) Exhaust Gas Analyzer Is Used For Vehicle Inspection Stations And Exhaust Gas Sensors
Features:

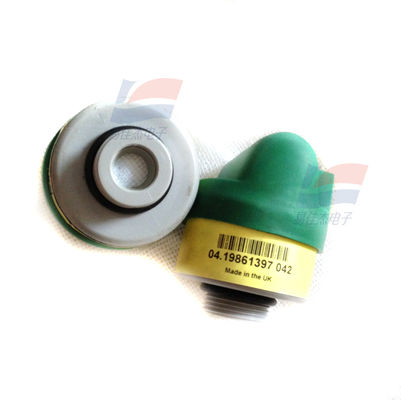

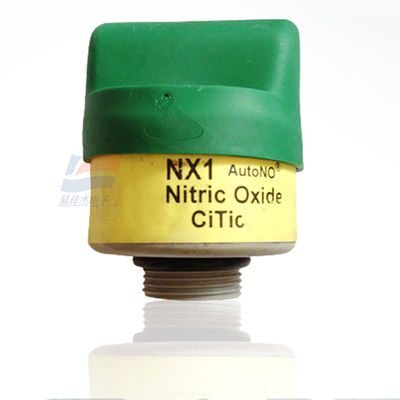

NX1 nitric oxide sensor is part of the AutoNO® series developed by Urban (Urban Technology Company) in the UK, and is used to detect nitric oxide gas in vehicles. It is equipped with a filter. The airborne service life is two years, and the maximum load is 5000 ppm. Key advantages: Specifically designed for automotive applications; Fast response speed.
Output: 0.05 ± 0.01 μa/ppm
Range: 0 - 5000 ppm

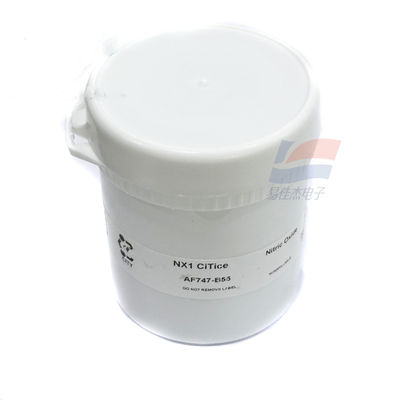

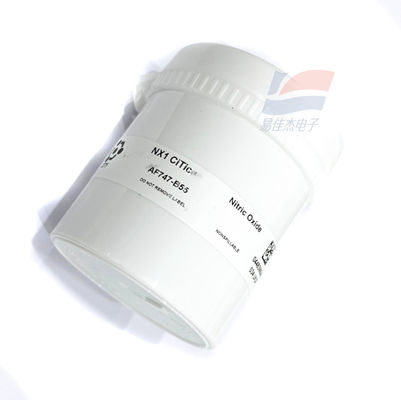

Packaging: Special sealed bottles
Operating temperature range: -20 °C to 50 °C
Accuracy: 1 ppm
Bias voltage: + 300 mV
Response time: Less than 8 seconds
Features: Built-in filter for automotive sensors, certified by BAR97
Type: Nitrogen oxide gas sensor
Typical application: Automotive gas detection
The nitrogen-oxygen sensor is used to analyze the content of nitrogen and oxygen in exhaust gas. It is an electrochemical sensor and has been applied in analytical instruments such as Guanzhong Technology, Fuming Environmental Protection Technology, Nanhua Instrument, and Guangzhou Fulihui Instrument.
Measurement range: 0 - 5000 ppm
Working life: 3 years in air
Output: 45 to 75 nanograms per ppm
Accuracy: +/- 3% (0 - 2000 ppm); +/- 5% (2000 - 5000 ppm)
Temperature range: 0 °C to 50 °C (with temperature compensation)
Pressure range: 750 to 1750 hPa
Response time (T90): < 5 seconds
Long-term drift: < 5% per month
Recommended load value: 10 ohms
Repeatability: 2%
Interface: 4-pin socket
Specifications:
| Measurement range |
0 - 5000 ppm |
| Working life |
3 years in air |
| Pressure range |
750 to 1750 hPa |
| Response time (T90) |
< 5 seconds |
