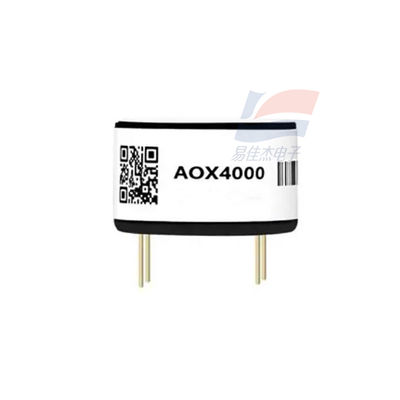

YJJ AOX4000 Fluorescent Oxygen Sensor - A Replacement For LOX-02 lead-Free Oxygen Concentration Sensor

Product Description:

YJJ AOX4000 Fluorescent Oxygen Sensor - A Replacement For LOX-02 lead-Free Oxygen Concentration Sensor

Features:

AOX4000 is an oxygen sensing probe based on the fluorescence quenching principle, used to measure the partial pressure of oxygen in the environment. The sensor is equipped with an internal pressure sensor, which can directly output the values of environmental pressure, oxygen partial pressure, and oxygen concentration, making it easy for users to read the data intuitively. Compared with electrochemical sensors, the AOX4000 uses non-dissipative oxygen-sensitive materials, thus having a longer lifespan. Due to its temperature compensation function, no additional compensation system is required. The AOX4000 is very stable and environmentally friendly, without lead or any other harmful substances, and is almost not interfered by other gases.

The AOX4000 has a wide range of applications and is suitable for scenarios such as oxygen generators, incubators, oxygen compressors, gas handling chambers (laboratory glove boxes), exhaust gas measurement systems, inert gas monitoring systems, and portable oxygen measurement devices.

Product model: AOX4000

Operating voltage: 4.75 - 5.25V

Operating current: average 7.5mA; peak 32mA

Oxygen concentration range: 0 - 25%

Oxygen partial pressure range: 500 - 1200 mbar

Atmospheric pressure range: < 2% FS

Oxygen partial pressure accuracy: ±5 mbar

Atmospheric pressure accuracy: -30°C - 60°C 0~95%RH

Working environment: -30°C to 60°C; 0~95%RH

Storage environment lifespan: > 6 years

Specifications:
