Product Description:

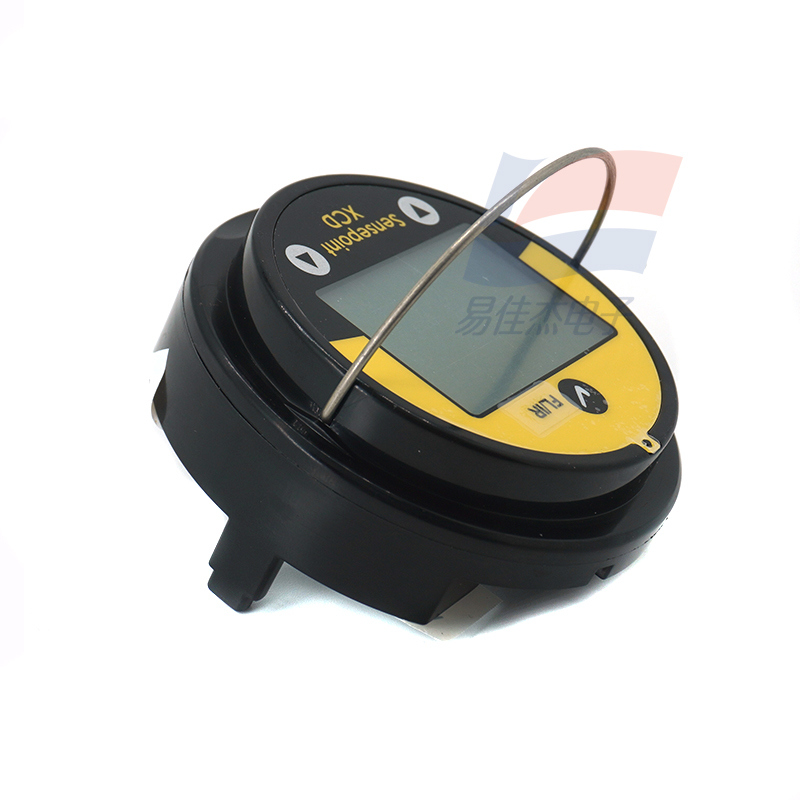

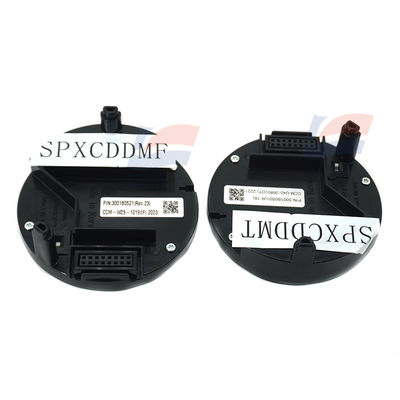

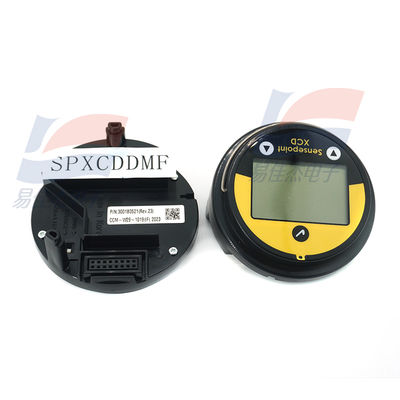

SPXCDTMF Gas Detector Accessory Housing
Features:
Sensepoint XCD series can comprehensively monitor flammable, toxic and oxygen hazards in potential explosive environments both indoors and outdoors. Users can modify the detector's operation using an LCD and a magnetic switch without having to open the device. This enables single-person, non-intrusive operation and reduces daily maintenance time and costs.
The main parameters of the SPXCDALMCX gas detector are as follows:
Parameter Description
Measurement Object: CO (Carbon Monoxide)
Measurement Range: 0 - 500 ppm
Power Supply Voltage: 16 - 32 VDC (default 24 VDC)
Accuracy: ±5% of full scale (O₂, CO, H₂S, catalytic combustion sensor)
Response Time: T₉₀ ≤ 30 seconds
Communication Mode: RS485, MODBUS RTU
Certification Temperature Range: -40° to +65°C (-40° to +149°F)
Shell Material: Aluminum alloy or stainless steel (weight 1.7 - 2.2 kg)
Sensor Type: Electrochemical sensor (toxic gas)
Output Signal: 4 - 20 mA three-wire current signal (optional leak type or source type)
Other characteristics
Support remote sensor installation (up to 30 meters) Have the ability to
Three-color backlit LCD display (green/yellow/red backlighting corresponds to normal/fault/alarm states)
Complies with international safety certifications such as UL, ATEX, IECEx, etc.
Sensepoint XCD gas detector is a fixed device installed in areas where there are flammable, explosive or toxic gases, used to detect the concentrations of combustible gases, toxic gases and oxygen in the air.
The core components of the Sensepoint XCD, such as the sensors, adopt multiple patented technologies to make the detection more accurate and have better long-term stability. The XCD uses the same housing for catalytic combustion, electrochemical and infrared sensors, enabling it to measure a wider range of gases and types. The newly added RTD and RFD models support remote installation of sensors and transmitters, and can also support universal 4-20mA output sensors. Therefore, the Sensepoint XCD is widely applicable in general industrial fields such as petroleum, chemical, metallurgy and manufacturing, and also performs exceptionally well in some harsh environments.
The Sensepoint XCD (with a similar sound to "beyond" in English) consists of one gas transmitter and multiple optional sensors,
including: combustible gas sensors, toxic gas sensors and oxygen sensors. The structure of the Sensepoint XCD is suitable for hazardous environments, as well as ordinary environments.
The transmitter of the Sensepoint XCD can not only perform on-site display but also comes with 3 programmable relays, which can control external devices such as external sound and light alarms, solenoid valves and switches. The transmitter of the Sensepoint XCD adopts standard industrial 3-wire wiring method and outputs 4-20mA analog signals to the gas detection control system or PLC.
The calibration and maintenance of the Sensepoint XCD are completed through a magnetic rod. Thus, only one operator can complete daily maintenance without opening the cover. The Sensepoint XCD is applicable in Class 1 and 2 hazardous areas (Europe) or Class 1 Division 1 or Division 2 (North America).
Transmitter:
The housing of the Sensepoint XCD transmitter has 3 wiring ports. Two of them are cable wiring ports, used for connecting power lines, signal lines and relay circuit wiring. The bottom wiring port is used for connecting the sensor. The Sensepoint XCD transmitter integrates an installation base plate to make the Sensepoint XCD suitable for various installation methods.
The on-site LCD display of the Sensepoint XCD transmitter can display gas type, gas concentration, alarm information and instrument status information. The display module can provide digital display, bar chart display and graphic identification.
When operated with a magnetic rod, the LCD of the Sensepoint XCD transmitter can also display diagnostic information. The transmitter housing has 1 glass window, and users can operate the instrument through the glass window using a magnetic rod. Using the magnetic rod operation enables users to perform single-person calibration and settings for the Sensepoint XCD.
Flammable gas, toxic gas and oxygen sensors
The Sensepoint XCD transmitter is equipped with two types of combustible gas sensors: non-dispersive direct infrared (NDIR) sensor and catalytic combustion sensor.
In addition, the Sensepoint XCD transmitter can be used to measure various toxic gases. The Sensepoint XCD uses electrochemical working principle (ECC) to detect toxic gases and oxygen.
SPXCDALMFX SPXCDALMRX SPXCDALMPX SPXCDALMO1
SPXCDALMHX SPXCDALMCX SPXCDALMG1 SPXCDALMNX SPXCDALMB1 SPXCDALMB2 SPXCDASMFX SPXCDASMRX SPXCDASMPX SPXCDASMO1 SPXCDASMHX SPXCDAMBX1
SPXCDALMFXM SPXCDALMRXM SPXCDALMPXM SPXCDALMO1M SPXCDALMHXM SPXCDALMCXM SPXCDALMG1M SPXCDALMNXM SPXCDALMB1M SPXCDALMB2M SPXCDASMFXM SPXCDASMRXM SPMCDXMXX SPXCDASMB1M SPXCDASMB1M
SPXCDULNFX SPXCDULNRX SPXCDULNPX SPXCDULNO1 SPXCDULNHX SPXCDULNCX SPXCDULNG1 SPXCDULNNX SPXCDULNB1 SPXCDULNB2 SPXCDUSNFX SPXCDUSNRX SPXCDUSNPX SPXCDUSNO1 SPXCDUSNNX SPXCDUSUSXX1
SPXCDULNFXM SPXCDULNRXM SPXCDULNPXM SPXCDULNO1M SPXCDULNHXM SPXCDULNCXM SPXCDULNG1M SPXCDULNNXM SPXCDULNB1M SPXCDULNB2M SPXCDUSNFXM SPXCDUSNRXM SPXCDXXXMXXXXUSXXMX
SPXCDALMTX4 SPXCDASMTX4 SPXCDULNTX4 SPXCDUSNTX4 SPXCDALMTX4M SPXCDASMTX4M SPXCDULNTX4M SPXCDUSNTX4M SPXCDALMRFD SPXCDASMRFD SPXCDULNRFD SPXCDUSNRFD SPXCDALMRFDM SPXCDASMRFDM PXCDULNRFDM SPXCDUSNRFDM SPXCDXSRFXSS SPXCDXSRRXSS SPXCDXSRPXSS SPXCDXSRB1SS
Specifications:
| Display mode |
4-digit LED digital tube displays |
| Status indication |
3 LED lights indicate power supply |
| Environmental temperature |
-20℃ to 50℃ |
| Relative humidity |
< 95% |
