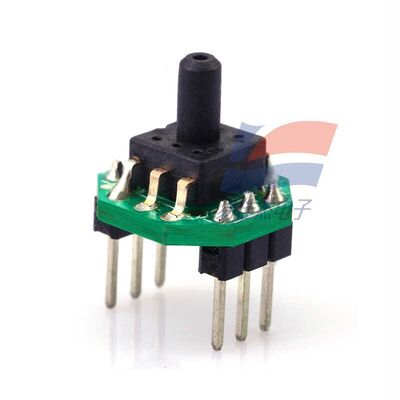

XGZP6847A Silicon Pressure Sensor Module For Medical and Healthcare Equipment Fitness and Daily Care Products

         XGZP6847A Silicon Pressure Sensor Module For Medical and Healthcare Equipment Fitness and Daily Care Products

Product Features:

1. It integrates a silicon piezoresistive pressure sensing element and an on-board ASIC in a DIP6 package. The compact 6-pin design facilitates easy installation and soldering on circuit boards, which is suitable for mass-produced electronic equipment.
2. It has a wide pressure measurement range from -100kPa to 1500kPa, and multiple sub-model options are available. It can meet the pressure detection needs of different scenarios such as vacuum, positive pressure and differential pressure.
3. It is fully calibrated and temperature-compensated. Within the compensation temperature range of 0°C - 60°C, the offset and span temperature coefficients are both as low as ±0.03% FS/°C, which effectively reduces measurement errors caused by temperature changes.
4. It supports dual supply voltage of 3.3V and 5V, and matches the analog output signal corresponding to the voltage. It can be directly connected to the A/D input port of microcontrollers and microprocessors without additional signal conversion modules.
5. It has excellent cost performance and reliability. With a long-term stability of ±2% span per year, it can maintain stable performance in long-term continuous operation. Meanwhile, it adopts a solid structure design to adapt to various common working environments.
6. It complies with the RoHS certification standard, and its material selection meets environmental protection requirements, which is applicable to various electronic products with strict environmental standards.

Typical Applications:

1. Medical and Healthcare Equipment: It is widely used in electronic sphygmomanometers, ventilators, anesthesia machines and infusion pumps. It can accurately detect air pressure and gas pressure in the pipeline, which is crucial for ensuring the safety and effectiveness of medical treatment. It is also applicable to cupping equipment and cosmetology instruments that rely on pressure control.
2. Home Appliances: Integrated into coffee machines, washing machines, humidifiers and vacuum cleaners. It realizes intelligent control functions such as water level detection, air pressure regulation and suction monitoring, improving the use experience and energy efficiency of household appliances.
3. Fitness and Daily Care Products: Applied to massage chairs, air beds and electric breast pumps. It can sense pressure changes to adjust the working intensity of the equipment, which meets the comfort needs of users.
4. Industrial and Pneumatic Equipment: Used in HVAC systems, pneumatic components and air pumps. It monitors the pressure of gas in the pipeline in real time to ensure the stable operation of the equipment. It can also be used in pressure gauges and flow detection devices in industrial automation lines.
5. Automotive and Consumer Electronics: Suitable for automotive pneumatic systems and emergency lights. It can also be matched with various small electronic devices that require pressure feedback, which expands the application scope in the field of consumer electronics.
