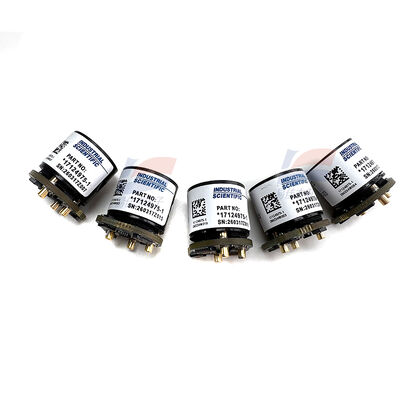

YJJ 17124975-4 Electrochemical Nitrogen Dioxide NO2 Sensor For MX6 iBrid Multi-Gas Detector

Product Description:

YJJ 17124975-4 Electrochemical Nitrogen Dioxide (NO2) Sensor For MX6 iBrid Multi-Gas Detector

Features:

I. Model and Order Number

Model / Part Number: 17124975-4

Corresponding Gas: Nitrogen Dioxide (NO₂)

Applicable Instruments: MX6 iBrid Six-in-One Gas Detector (Special Replacement Sensor)

Sensor Type: Electrochemical

II. Core Parameters

Detected Gas: Nitrogen Dioxide (NO₂)

Range: 0–20 ppm (Industrial Standard)

Resolution: 0.1 ppm

Response Time T90: ≤ 30 s

Operating Temperature: -20℃ ～ +55℃

Humidity: 15%–95% RH (No Condensation)

Life Span: 2 Years (Normal Environment)

Output: Linear Current Output, Automatically Identified by MX6 Host

Package: MX6 Special Cylindrical Type, 3-pin Connector

Features: Good Selectivity, Strong Anti-interference, Plug-and-Play, Factory Calibration

III. Main Applications

Mining / Tunneling: Monitoring of toxic NO₂ gas after blasting, prevention of poisoning.

Chemical / Metallurgy: Nitric acid, explosives, metal surface treatment processes and leakage detection.

Automobile Exhaust / Environmental Protection: Flue gas, engine emission concentration monitoring of NO₂.

Confined Spaces: Detection of toxic gas entering underground pipe galleries, mines, tunnels.

Industrial Safety: NO₂ is highly toxic (irritating to the respiratory tract), real-time alarm at the scene.

IV. Comparison with the Same Series (Quick Reference for MX6 Sensors)

17124975-1: CO (0–1500 ppm)

17124975-2: H₂S (0–500 ppm)

17124975-3: O₂ (0–30% VOL)

17124975-4: NO₂ (0–20 ppm)

17124975-5: SO₂ (0–100 ppm)

17124975-6: NH₃ (0–100 ppm)

Specifications:
